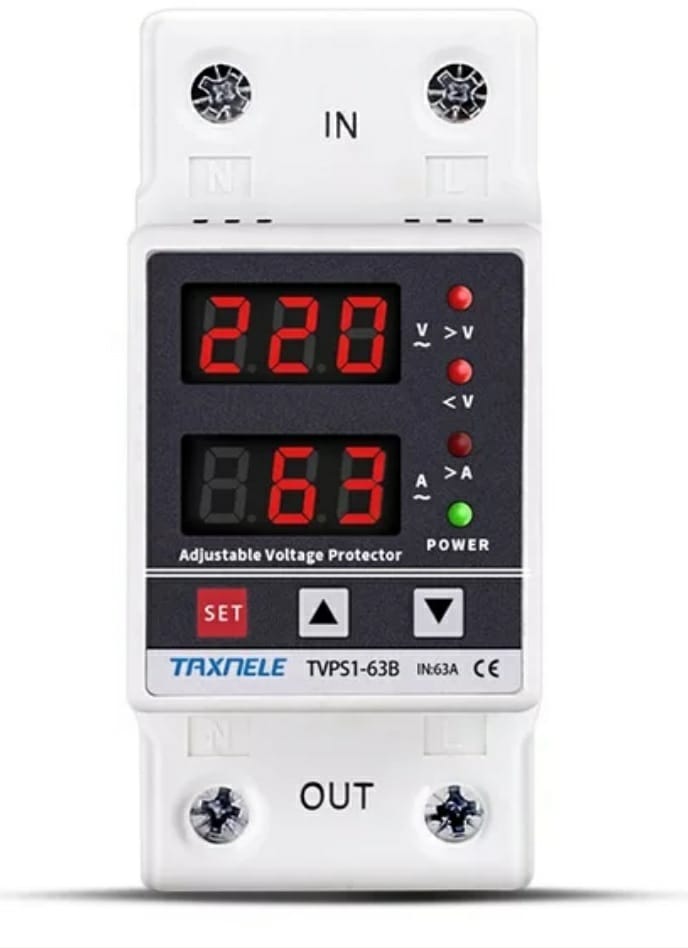

63A Single Phase Over Voltage , Under Voltage and Current Protector

Description

This is a new device in the market that has the following functions:

• Automatic Under Voltage Protection
• Automatic Over Voltage Protection
• Automatic Overcurrent Protection
• The parameters can be easily set by the user.
• It has an Auto Reclosing Function after pre-set time.
• It has on delay timer

Main parameters

• Input Voltage : 140-300V
• Over voltage Value: 230-300V, Default Value 270V
• Over voltage Recovery Value: 225-295V, Default Value 265V
• Under Voltage Value: 140-210V, Default Value 170V
• Under Voltage Recovery Value : 145-215V, Default 175V
• Over Current Protection Value: 1-63A , Default Value 40A
• Overcurrent Recovery Value : 0.5-62.5A
• Action Time: 0.1-30s, Default 1s
• Recovery Time: 1-500s, Default 30s
• Continuous Overcurrent Fault Times : 1-20times, Default: OFF
• Power Consumption: Less than 2watts
• Power On Delay Time: 1-500s, Default 10s
• Wiring: Top Entering, Bottom out to the load
• Boundary Dimensions 86x38x68mm
• Mounting Type: DIN Rail
